ONE: Cartridge Tank Filtration System, Lightweight and Cost Effective Residential and Commercial Applications

Category:

Description

Say goodbye to small and inefficient housings. Get rid of expensive stainless steel housings. The ENPRESS Cartridge Tank® is a direct replacement for small and inefficient 2½” or 4½” housings, or expensive Stainless Steel cartridge housings, and offers extended service and life, and a more cost effective and efficient filtration solution.

Utilizing ENPRESS’ patented industry exclusive liner design and no tools necessary snap-ring design; Full radial seal top and bottom caps make replacement simple. Cartridge Tank® makes it easy to access and remove the internal filtration solution.

Lightweight and cost effective with multiple configuration options, from high flow commercial/industrial applications to stand-alone residential Point of-Entry (POE) installations for city and well water applications, this is the filtration solution of the future…100% non-metallic! The Cartridge Tank® is a high performance, NSF 44 listed device and has been tested to 150 psi operating pressure with 4:1 Burst Safety Factor.

enpress cartridge tank filtration system housing black inner cutout

This revolutionary, patent pending filtration system features easy-to-access top and bottom openings for use with various filtration connections and solutions. Lightweight and cost effective with multiple configuration options, this is the filtration solution of the future…100% non-metallic! Utilizing ENPRESS’ patented, industry exclusive liner design, the vessel features three optional top and bottom opening connections for use with a pressure release valve configuration or a control valve/in-out head, along with bottom or top drain plumbing connections for residential and light commercial installations.

Patent pending snap-ring design makes it easy to remove top and bottom opening connections to access the internal filtration solution. Full radial seal top and bottom caps make replacement simple.The ENPRESS Cartridge Tank™ is a direct replacement for small and inefficient 2.5” or 4.5” housings, or expensive Stainless Steel cartridge housings.

Designed for easy access, the Pressure Release top opening with plumbing connections at the bottom allows the end-user to access and service the filter without disrupting the plumbing. The Cartridge Tank™ is a high performance, NSF 44 and 61 listed device and has been tested to 150 psi operating pressure with a 4:1 burst safety factor.

Blue Filtration Series

Features

  • High-performance carbon
  • Unique binder system
  • Proprietary manufacturing process
  • Double Buna-N O-ring seals
  • Polypropylene Outer Wrap
  • Netting of Polyethylene

Benefits

  • Exceptionally low pressure drop
  • High dirt holding capacity
  • Excellent contaminant reductions

Applications

  • Ideal for Residential, Food Service, Commercial and Industrial applications
  • Ideal as polishing or pre-filters in applications requiring fine filtration and high capacity
  • Reduction of Chlorine, Chloramine, taste and odor

BL

enpress cartridge tank system blue carbon chloromines filter

Summary

The Blue Filtration Series incorporates surface modified carbon block filter technology that is highly effective reducing bad taste, odor, and the reduction of chlorine and chloramines from potable drinking water. The filters are made using high performance coconut shell carbon, which has more micropores compared to other types of carbon.

Coupled with a unique binder system, these carbon block filters deliver a product with superior adsorption capacity and kinetic dynamics. The unique high capacity filters provide cost effective water filtration solutions in a size and configuration that offer easeof-use, extended service life and high capacity, with a low pressure loss.

The Chloramine Block is a proprietary media with an enormous number of catalytically active Nitrogen Groups for highly efficient reduction of chloramines. This enhanced catalytic functionality has FIVE times more capacity for chloramines reduction than standard carbon blocks.

All components and materials are made with FDA approved materials, and Manufactured from NSF 61 Certified Coconut Shell carbon, and are California Prop 65 Compliant. Each filter comes with a unique handle designed top cap for lightweight and easy removal, a bag for proper disposal, and a double o-ring bottom connection into the Cartridge Tank® plumbing adapter for the 2½” assembly and full 1¼” PVC glue socket flow rate connections.

Yellow Filtration Series

Features

  • Outer pre-filter manufactured using 100% polypropylene yarn
  • Outer filter captures fine sediment, sand, silt, rust and scale particles
  • Melt blown inner filter manufactured using thermally bonded polypropylene fibers

Benefits

  • Microorganism resistant NSF component
  • Nominally rated as stated
  • High purity
  • Excellent chemical resistance
  • High dirt holding capacity
  • Graded density

Applications

  • Potable water, Food/beverage, Pre RO, Fine chemicals, Electronics, Metal finishing, Plating solutions, Oxidizing agents, Corrosive fluids, Gases, Concentrated acids and alkali

Summary

The Yellow Filtration Series are dual gradient double pleated filtration solutions for extended life and use, with filtration levels of 5 and 20 microns. This Series offers a combination filter composed of an outer layer of Polypropylene String with a Melt blown Polypropylene core. The precise wound pattern provides greater surface area, higher dirt-loading capacity and greater efficiency than standard wound filter cartridges. As a dual media filter, they provide a cost effective, extended-life product capable of capturing a broad range of particulates with high service flow rates greater than 30+gpm with less than 15 Delta P.

The large diameter pre-filter reduces particulate loading on the post filter allowing it to perform at higher velocities, capturing fine sediment, sand, silt, rust and scale particles of 50 or 20 microns. This equates to higher particulate reduction and added loading capacity.

The Meltblown core captures 20 or 5 micron particles, (depending on the filter configuration), this dual combination filter extends the life of the inner-cartridge by eliminating premature caking and prevents down stream media migration common in string cartridges.

Each filter comes with a unique handle designed top cap for lightweight and easy removal, a bag for proper disposal, and a double o-ring bottom connection into the Cartridge Tank® plumbing adapter for the 2½” assembly and full 1¼” PVC glue socket flow rate connections.

YE

enpress cartridge tank system yellow higher capacity particulates filter

Green Filtration Series

Features

  • Dual Gradient Double Pleated Filters with electropositively charged NanoAl™ media
  • Double Buna-N O-ring seals
  • Filter Belly Bands
  • PAC solution option
  • Agion® antimicrobial technology

Benefits

  • Remove contaminants from 1 to 0.2 microns
  • Higher flow rate and loading capacity
  • Reduces unwanted bad taste and odor from potable drinking water
  • 24/7 resistance of microbe growth

Applications

  • Primary Filtration in lieu of microporous membranes
  • Make Up Water (particulate, microbial control)
  • Polishing Filters (carbon fines, emulsified oil removal)
  • RO Prefiltration (SDI reduction)
  • Process Water (turbidity, particulate, colloidal suspensions)
  • Waste Water (biologicals, proteins, dyes)
  • Cooling Towers, Chill Water Loops (iron removal)

GR

enpress cartridge tank system green orange electropositively charged contaminants life extending filter

Summary

The Green Filtration Series are electropositively charged dual gradient double pleated filtration solutions that successfully remove contaminants from 1 to 0.2 microns, featuring ENPRESS NanoAl™ media. The filters are designed with a larger 20 micron pre-filtration layer externally and the charged media internally, extending filtration level contamination and service life, while achieving high flow and low pressure drop.

The filters will outperform competitive filtration solutions in all turbidity applications including insoluble scale, Fe3+, bacterial iron slime, colloidal solids, silt, rust, and other particle filtration, resulting in higher water quality and longer life of the filtration system.

The Green Series of pleated filters features a thermally bonded blend of micro-glass fibers & cellulose, infused with nanoalumina fibers in a non-woven matrix that creates an electropositively charged depth filter media. When assembled into a pleated cartridge, our solution offers a unique combination of efficiency, capacity, flow rate, & low pressure drop that allow this nonwoven media to filter like a NF polymeric membrane, at levels unmatched in today’s filtration marketplace. All filters feature the use of Agion® antimicrobial technology that provides built-in protection by working 24/7 resisting the growth of microbes.

Each filter comes with a unique handle designed top cap for lightweight and easy removal, a bag for proper disposal, and a double o-ring bottom connection into the Cartridge Tank® plumbing adapter for the 2½” assembly and full 1¼” PVC glue socket flow rate connections.

Orange Filtration Series

Features

  • Dual Gradient Double Pleated Filters
  • Double Buna-N O-ring seals
  • Filter Belly Bands
  • Durable Polyester filter and Polypropylene cap construction

Benefits

  • Extended service life, contaminant removal, and dirt holding capacity
  • Ensures no bypass of contaminants and high chemical compatibility
  • Prevents collapsing of filters under high flow or contaminant load applications
  • Bacteria and chemical resistant filter

Applications

  • Ideal for Residential, Food Service, Rental Fleets, Commercial and Industrial Applications
  • Make-up Water, RO Prefiltration, Cooling Towers, Chill Water Loops, Metal Finishing Process Water (turbidity, particulate, colloidal suspensions)

Summary

The Orange Filtration Series are dual gradient double pleated filtration solutions for extended life and use, with filtration levels of 5, 10 and 20 microns. The filters are designed with a larger pre-filtration layer externally and the smaller internally, extending filtration level contamination and service life, while achieving high flow and low pressure drop.

The filters will outperform competitive filtration solutions in all turbidity applications including silt, rust, and other particle filtration. The Orange Series also provides lower shear water velocity as the raw water passes through the filter, allowing for more contact time and interaction with the extensive surface area of the filters. This results in higher water quality and longer life of the filtration system

Each filter comes with a unique handle designed top cap for lightweight and easy removal, a bag for proper disposal, and a double o-ring bottom connection into the Cartridge Tank® plumbing adapter for the 2½” assembly and full 1¼” PVC glue socket flow rate connections.

OR

enpress cartridge tank system green orange electropositively charged contaminants life extending filter

White Filtration Series

Features

  • 0.5 cu ft empty media bottle
  • Polyethylene construction
  • Vortech® distributor plate
  • Locking or Removable top cap
  • Rings on bottom of bottle
  • Double Buna-N O-ring seals
  • Mid-Vortech® distributor plate option

Benefits

  • Extended service life and high capacity contaminant removal
  • High chemical resistance
  • Up-flow or down-flow service and full utilization of the media bed
  • Ease of handling
  • Ensures no bypass of contaminants and high chemical compatibility
  • Separation of multimedia configurations

Applications

  • Ideal for Residential, Food/Beverage Service, Rental Fleets, Service DI Exchange, Plating solutions, Commercial and Industrial Applications
  • Metal finishing, Oxidizing agents, Corrosive fluids, Electronics, Pre-RO, Process Water, Waste Water, Cooling Towers, Make-up Water, Polishing Filters, Primary Filtration

WH

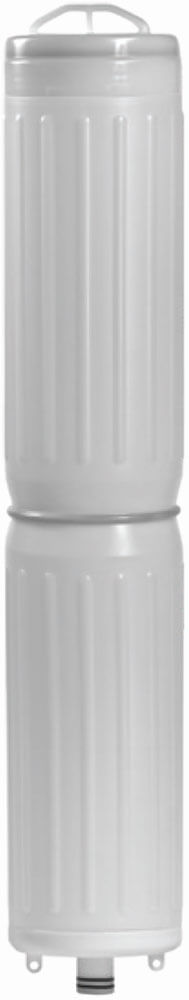

enpress cartridge tank system white granular media bottle

Summary

The White Filtration Series is a unique and high capacity granular media bottle that allows incorporation of multiple media options and solutions to be used with the series. This filter series is a 0.5 ft3 empty bottle for filling of granular filtration media. This ONE – Water Filtration Simplified™ filter series is ideal for a wide range of Residential, Food Service, Commercial, and Industrial applications, and can be used for multiple applications from Service DI, POE for city or well-water installations, Rental Programs, Exchange systems, high-purity pre- or post-filtration applications, etc…the options, configurations, and solutions are endless.

The design also incorporates the patented Vortech® full distributor plate technology, providing uniform distribution and utilization of the media bed along with maximum efficiencies and service flow rates, giving system design maximum flexibility whether installed in up-flow or down-flow service. A removable Top Cap has a locking feature that can be used for limiting access to the internal medias by the end-user, and special Rings on the bottom of the bottle allow for ease of hanging of the cartridge for easy change-out of medias in applications like Service DI Exchange.

The White Series is also available in a Mid-Vortech® configuration that splits the cartridge chambers equally, to 0.25 ft3 per chamber, for separation and use of different medias of which increases the efficiency and usage of the media bed.

Each filter comes with a unique handle designed top cap for lightweight and easy removal, and a double o-ring bottom connection into the Cartridge Tank® plumbing adapter for the 2 ½” assembly and full 1” PVC glue socket flow rate connections.

High Flow Rate Industrial ONE: Cartridge Tank Filtration System

Purple Filtration Series

Features

  • Durable and chemical resistant
  • Polypropylene filter and cap construction
  • Double EPDM O-ring seals
  • Unique filter handle design

Benefits

  • Extended service life, contaminant removal, and dirt holding capacity
  • Insures no bypass of contaminants and high chemical compatibility
  • Prevent collapsing of filters under high flow or contaminant load applications
  • Bacteria and chemical resistant

Applications

  • Ideal for Residential, Food Service, Rental Fleets, Commercial and Industrial Applications
  • Make-up Water, RO Prefiltration, Cooling Towers, Chill Water Loops, Metal Finishing Process Water (turbidity, particulate, colloidal suspensions)
  • Community Water, Livestock, or Poultry, Water Systems
  • Replacement of bag filters with more surface area and capacity

Summary

The Purple Filtration Series are high flow rate meltblown polypropylene filtration solutions for extended life and use, with filtration levels of 5 and 20 microns. The filters are designed with a large surface area depth filtration design, extending filtration level contamination and service life, while achieving high flow rates up to 100 GPM (380 LPM) and low pressure drop.

The filters will outperform competitive filtration solutions in all turbidity applications including silt, rust, and other soft particle filtration. The Purple Series also provides lower shear water velocity as the raw water passes through the filter, allowing for more contact time and interaction with the extensive surface area of the filters. This results in higher water quality and longer life of the filtration system.

A direct replacement for expensive stainless steel housings used in commercial RO pre-filtration, Process Water, Cooling Towers, and other Commercial and Industrial applications, and exclusively designed for the Cartridge Tank®, these filters have significant surface area, low pressure drop, and high flow rate capabilities.

The filters are ideal as polishing or pre-filters in applications requiring fine filtration and high capacity. Utilizing 100% polypropylene media, these are the commercial filtration solutions of the future!

Each filter comes with a unique handle designed top cap for lightweight and easy removal, a bag for proper disposal, and a double o-ring connection. All components and materials are manufactured from NSF 61 and FDA Certified materials

PL

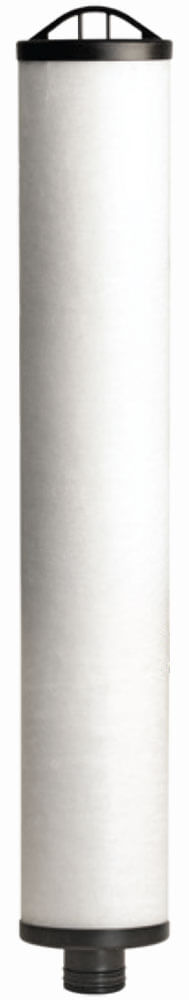

enpress cartridge tank system purple high flow rate turbidity filter

Red Filtration Series

Features

  • Durable and chemical resistant
  • Polypropylene filter and cap construction
  • Double EPDM O-ring seals
  • Filter Belly Bands
  • Unique filter handle design

Benefits

  • Extended service life, contaminant removal, and dirt holding capacity
  • Insures no bypass of contaminants and high chemical compatibility
  • Prevent collapsing of filters under high flow or contaminant load applications
  • Bacteria and chemical resistant

Applications

  • Ideal for Residential, Food Service, Rental Fleets, Commercial and Industrial Applications
  • Make-up Water, RO Prefiltration, Cooling Towers, Chill Water Loops, Metal Finishing Process Water (turbidity, particulate, colloidal suspensions)
  • Community Water, Livestock, or Poultry, Water Systems
  • Replacement of bag filters with more surface area and capacity

RE

enpress cartridge tank system red high flow rate long life filter

Summary

The Red Filtration Series are high flow rate pleated filtration solutions for extended life and use, with filtration levels of 1 Absolute, 5, 20, 50, and 150 microns, along with an activated carbon (PAC) solution as well. The filters are designed with a large filtration layer, extending filtration level contamination and service life, while achieving high flow rates up to 150 GPM (568 LPM) and low pressure drop.

The filters will outperform competitive filtration solutions in all turbidity applications including silt, rust, and other particle filtration. The Red Series also provides lower shear water velocity as the raw water passes through the filter, allowing for more contact time and interaction with the extensive surface area of the filters. This results in higher water quality and longer life of the filtration system.

A direct replacement for expensive stainless steel housings used in commercial RO pre-filtration, Process Water, Cooling Towers, and other Commercial and Industrial applications, and exclusively designed for the Cartridge Tank®, these filters have significant surface area, low pressure drop, and high flow rate capabilities. The filters are ideal as polishing or prefilters in applications requiring fine filtration and high capacity. Utilizing 100% cellulose free media and cleanable from 5 micron and up, these are the commercial filtration solutions of the future!

Each filter comes with a unique handle designed top cap for lightweight and easy removal, a bag for proper disposal, and a double o-ring connection. All components and materials are manufactured from NSF 61 and FDA Certified materials.

Easy Replacements!
No Tools Means No Tools.

Press the RED pressure relief valve and pull the SNAP-RING

Lift top cap
